HRV REPLACEMENT FAN BOX

ROOF SPACE AIR VENTILATION

HEAT RECOVERY SYSTEM FOR ALL OLD METAL HRV BOX

Having old HRV system that faulty .

looking for solution but they only provide new system ,that will cost 3k+

Try Mingfans HRV replacement system-engineered for easy installation

its similar to your old units, just simply take old one out and replace with new

1. It came with 3pin plug ,plug in and play,easy for old units replacment

2. It come with 6m cable all prewired & Tested to the controller before dispatch

3. only requires some skill to fish down the cable to installs the controller on wall

HRV Replacement units range

Single units

Double units (Slave)

Triple units(2X slave)

availiable on request

Single units Includes

• 1x HRV replacement Fan box with hanging straps

• 1 x Mingfans Smarts WIFI Thermostat control panel

• 1 x 6m 7cord connection cable for control

• 1 x 2m power cable with male 3 pin plug

• 1x internal roof sensor

• 1 x aluminum frame HRV size F7 filter 290X300MM

• 2 x Fast clamp for outlets 150mm

• 2 Years RTB Warranty

• SINGLE PHASE :105/80/63W
  RPM:2500/2100/1700RPM
  AIR FLOW RATE:700/550/380CMH
  AMPS:0.6A 33-43DBA
  VOLTS:230V 50HZ

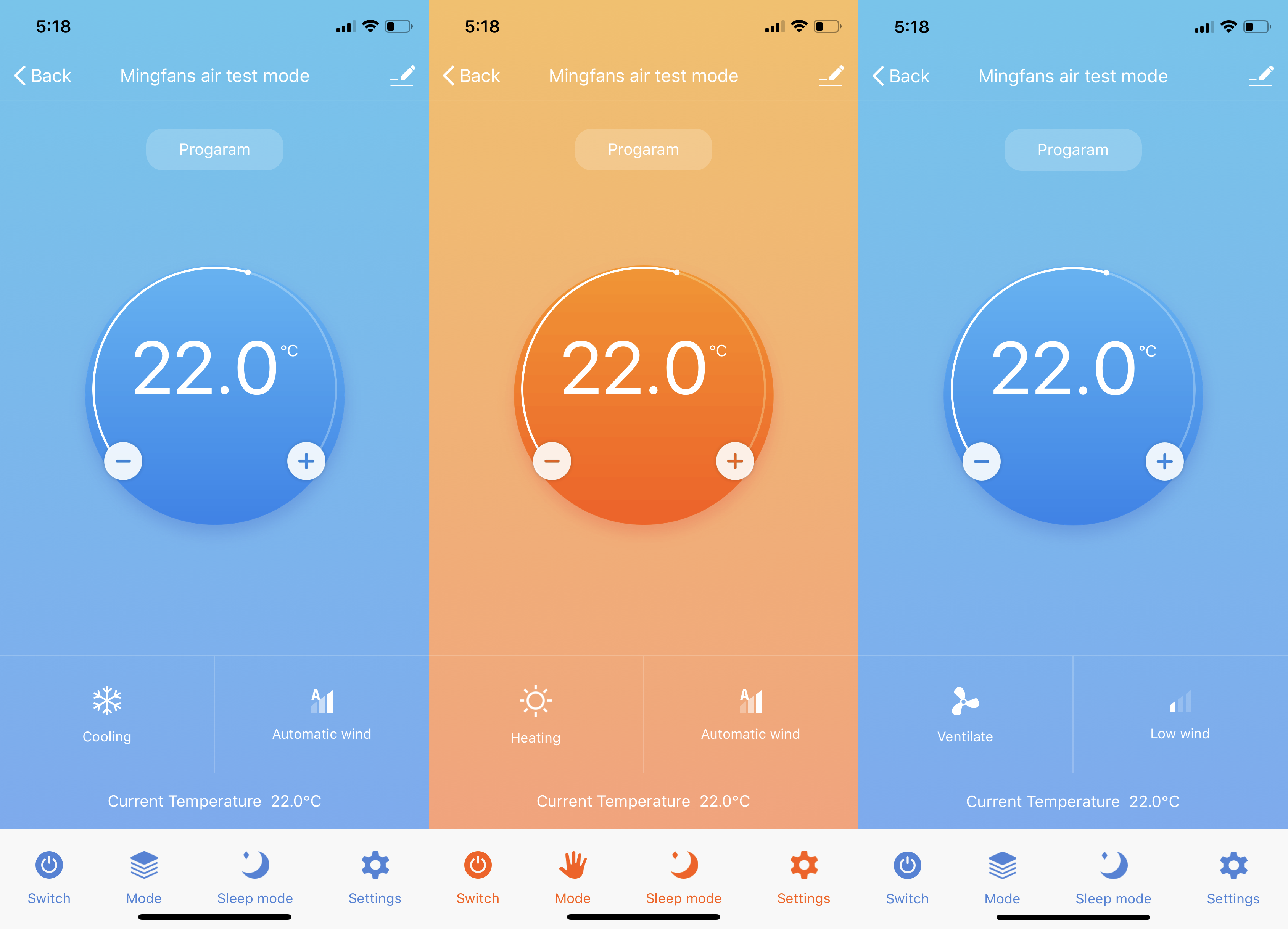

Come with supporting app Smart life ;TUYA smart; Smart RM Our smart wifi controller Bring ventilation system to next level
